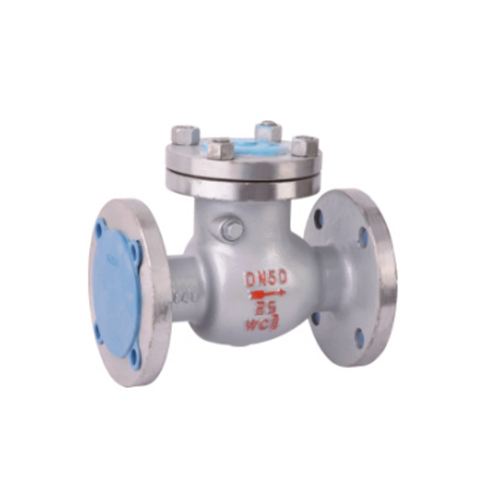

Check valve series: High-Performance Valves for Preventing Backflow and Ensuring System Integrity
The Check Valve Series is designed to ensure fluid flows in the correct direction within industrial systems, effectively preventing backflow and maintaining system integrity. These valves automatically block the reverse flow of liquids or gases, safeguarding equipment, pipelines, and the environment. The Check Valve Series is widely used in a variety of industries, including water treatment, oil and gas, chemical processing, and HVAC systems, where preventing backflow is essential to maintaining operational efficiency.
In this article, we will cover maintenance methods, performance testing, maintenance frequency, and maintenance requirements for the Check Valve Series to ensure that these critical components continue to perform reliably and efficiently.
Proper maintenance of the Check Valve Series is crucial for ensuring optimal performance and longevity. Below are the key maintenance methods to keep your check valves functioning efficiently.
Regular visual inspections are essential for detecting potential issues early, such as leaks, cracks, or signs of wear. During inspection, check the following components:
Valve Body: Look for signs of corrosion or damage.
Seals and Seats: Ensure that the valve seals and seats are intact and not excessively worn, as these are critical for preventing leaks.
Disc or Poppet: Inspect for any damage or obstruction that might affect the valve’s ability to close properly.
Spring (if applicable): In spring-assisted check valves, ensure the spring is not corroded or damaged.
Tools Required:
Visual inspection tools (flashlight, magnifying glass).
Cleaning supplies (if applicable).
Cleaning the valve regularly helps maintain smooth operation and prevents the build-up of debris, which could obstruct the valve's components.
Exterior Cleaning: Use a non-abrasive cloth and suitable solvent to clean the exterior of the valve.
Interior Cleaning: If there is any debris inside the valve, disassemble the valve (if applicable) and clean the internal parts carefully using a soft brush or appropriate cleaning solution.
Cleaning Frequency: Cleaning should be done based on operational conditions, with a recommended frequency of every 6-12 months.
For valves with moving parts, lubrication is essential to reduce friction and ensure smooth operation. Apply appropriate lubricant to the valve stem, disc, and other moving components.
Lubricants: Use the manufacturer-recommended lubricant type. Avoid using excessive lubrication, as it could attract debris or interfere with valve movement.
Lubrication Frequency: Lubrication should be done every 6-12 months or when performance begins to degrade.
If the valve is not performing as expected, or if significant wear is noticed, disassembly is required for a more thorough inspection and maintenance.
Parts Inspection: Check the spring, seals, seats, and disc for wear or damage. Replace any parts that are no longer functioning effectively.
Reassembly: Reassemble the valve with care, ensuring that all components are correctly aligned and tightened to manufacturer specifications.
Testing the performance of the Check Valve Series ensures that the valves function properly and meet system requirements. Regular testing can help identify issues such as leaks or improper sealing before they cause significant damage.
Pressure testing helps verify that the valve can withstand operational pressures without leaking.
Procedure: Close the valve and apply pressure according to the manufacturer’s specifications. Gradually increase the pressure until the valve reaches its rated pressure.
Observation: Check for any signs of leakage from the valve body, stem, or disc.
Frequency: Perform pressure tests every 1-2 years, or more frequently if the system operates under high pressure.
Check valves must prevent backflow effectively. Perform backflow testing by reversing the flow and observing whether the valve closes properly.
Procedure: Reverse the flow through the valve and monitor the movement of the valve disc or poppet. If the valve doesn’t close completely or backflow occurs, the valve may need adjustment or replacement.
Frequency: Conduct backflow tests annually or more frequently in critical applications.
Leakage testing is crucial for detecting small leaks that can compromise system performance.
Procedure: Isolate the valve, apply pressure, and check for any signs of leakage around the valve’s body, stem, or seal areas.
Tools: Use a leakage detector or apply soapy water to the valve surface to detect small leaks.
Frequency: Leakage testing should be done at least once a year or whenever there are signs of decreased valve performance.
The maintenance frequency for the Check Valve Series depends on the type of system in which the valve is used, its operational conditions, and the manufacturer’s recommendations. Below are general guidelines for valve maintenance.
Visual Inspection: Check for obvious signs of damage, leaks, or obstructions.
Cleaning: Perform exterior cleaning as needed, particularly in environments prone to dirt and debris.
Lubrication: Apply lubricant to moving components to ensure smooth operation.
Internal Inspection: For valves exposed to harsh conditions, inspect internal components every quarter.
Disassembly and Thorough Cleaning: If required, disassemble and clean the valve thoroughly.
Seal and Seat Inspection: Check seals and seats for any signs of wear.
Pressure, Backflow, and Leakage Testing: Perform comprehensive performance testing to ensure proper valve function.
Replacement of Worn Components: Replace any worn or damaged parts, such as seals, springs, or discs.
To keep the Check Valve Series operating at peak performance, adhere to the following maintenance requirements:
Always replace parts with original equipment manufacturer (OEM) components. OEM parts are designed to work seamlessly with the valve, ensuring optimal performance and longevity.
Ensure that the check valves are correctly installed, with the flow direction properly aligned. Incorrect installation can result in improper valve operation and failure to prevent backflow.
Maintain the check valve within the specified temperature and pressure limits. Operating a valve outside of its recommended limits can cause premature wear and reduce its effectiveness.
Monitor the valve’s performance over time. This includes keeping track of any changes in flow rate, pressure, or signs of leaks. Early detection of potential problems can prevent costly downtime and repairs.
Keep the valve and surrounding system free of debris and corrosive substances. Ensure the system is properly flushed if necessary to prevent contaminants from affecting valve performance.
The Check Valve Series is utilized across a wide range of industries to ensure that fluid or gas flow is only allowed in one direction. Below are some of the primary applications:
Check valves are used in water treatment facilities to prevent backflow from polluted areas back into clean water supply systems.
Benefits: Protects drinking water quality and prevents contamination.
In the oil and gas industry, check valves are essential for preventing backflow in pipelines, ensuring the safety of high-pressure systems.
Benefits: Maintains pressure integrity and prevents equipment damage.
In HVAC systems, check valves are used to prevent backflow of refrigerants or other fluids, ensuring that the system operates efficiently and safely.
Benefits: Improves system reliability and longevity.
Check valves prevent reverse flow in chemical processing systems, protecting sensitive equipment from contamination.
Benefits: Protects costly equipment and ensures the safety of chemical processes.
| Specification | Details |
|---|---|
| Nominal Size | 2” – 36” (50mm – 900mm) |
| Pressure Rating | 150 – 2500 PSI |
| Temperature Range | -20°F to 750°F (-29°C to 400°C) |
| Body Material | Stainless Steel, Cast Iron, Bronze |
| Seat Material | PTFE, Metal-to-Metal, Ceramic |
| Spring Material | Stainless Steel, Inconel |
| Flow Direction | One-Way (Standard) |
| End Connections | Flanged, Threaded, Butt Weld |
| Actuation Type | Spring-Assisted, Piston, Swing |
| Seal Type | Soft Seals, Metal Seals |
The Check Valve Series offers high-performance solutions for preventing backflow and ensuring the integrity of industrial systems. By following proper maintenance methods, performing regular performance tests, and adhering to installation guidelines, you can extend the life of your valves and enhance system efficiency. Whether used in water treatment, oil and gas pipelines, HVAC systems
