Electric resilient seated gate valve: Certification, Packaging, Maintenance, and Technical Services

Introduction

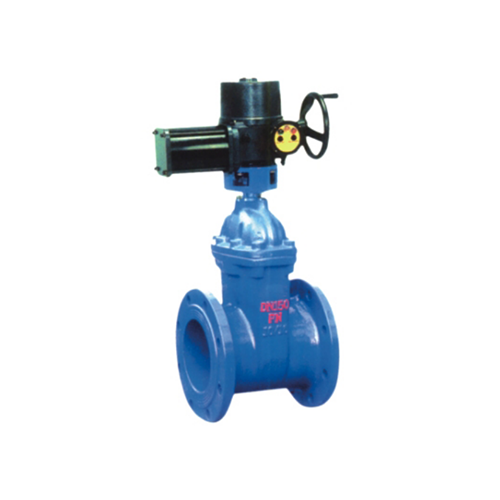

The Electric Resilient Seated Gate Valve is a modern industrial valve engineered for automated on/off control of liquids in pipelines. Featuring a resilient elastomeric seat, it provides tight sealing, minimal leakage, and smooth operation, making it ideal for water treatment, wastewater management, chemical processing, and industrial fluid systems.

Equipped with a high-quality electric actuator, the valve allows remote operation, precise flow control, and energy-efficient automation. Its durable construction using ductile iron, stainless steel, or carbon steel ensures long-term reliability and corrosion resistance.

This guide provides detailed information on product certification, packaging and shipping specifications, maintenance practices, and available technical services, helping operators maximize performance and longevity.

1. Product Certification

1.1 International Standards Compliance

The Electric Resilient Seated Gate Valve is manufactured to meet global quality and safety standards, including:

• ISO 9001: Ensures consistent quality management systems

• EN 1074-2: Compliance with European standards for resilient seated valves

• API 607: Fire-safe certification for industrial applications

• CE Marking: Confirms conformity with European safety regulations

1.2 Quality Assurance

• Factory Testing: Each valve undergoes hydrostatic and operational testing

• Material Certification: Raw materials are certified for mechanical strength and corrosion resistance

• Traceability: Every valve has a unique serial number for tracking and quality control

1.3 Performance Guarantees

• Tight Shut-Off: Resilient elastomeric seat ensures minimal leakage

• Durability: Tested for high-cycle operation in demanding environments

• Reliable Automation: Electric actuator ensures precise and safe remote operation

2. Packaging and Shipping Specifications

2.1 Packaging Guidelines

• Protective Coating: Valve surfaces coated with anti-corrosion agents

• Secure Packaging: Crated or boxed with shock-absorbing materials to prevent impact damage

• Gate Protection: Sealing surfaces are wrapped or padded to avoid scratches

2.2 Transportation Requirements

• Use forklifts or cranes for heavy valves to prevent damage

• Store valves in a dry, ventilated area before installation

• Avoid direct exposure to sunlight or harsh chemicals during transport

2.3 Shipping Compliance

• Complies with IATA, IMO, and ADR regulations for international shipments

• Each package is labeled with size, weight, and handling instructions

2.4 Packaging Table

3. Maintenance Recommendations

3.1 Routine Inspection

• Monthly: Visual inspection of valve body, actuator, and seals

• Quarterly: Operational test to ensure smooth opening and closing

• Annually: Detailed internal inspection and actuator calibration

3.2 Lubrication

• Apply manufacturer-approved lubricant to moving parts every 3–6 months

• Ensure the electric actuator gears are lubricated as per guidelines

3.3 Cleaning Procedures

• External Cleaning: Use a soft cloth and mild detergent to remove dust and debris

• Internal Cleaning: Flush pipelines to remove sediment or debris, especially in water and wastewater applications

3.4 Maintenance Schedule Table

3.5 Common Maintenance Issues

• Leakage at Seat: Caused by wear or debris; solution: clean or replace seat

• Actuator Malfunction: Check electrical connections, power supply, and calibration

• Gate Sticking: Caused by dirt or corrosion; solution: clean and lubricate

4. Technical Services

4.1 Installation Support

• Professional guidance for manual and automated valve installation

• Recommendations for pipeline alignment, flange torque, and actuator mounting

4.2 Operator Training

• On-site or remote training for safe and efficient valve operation

• Instruction on emergency shutdown, actuator settings, and maintenance procedures

4.3 Spare Parts and Upgrades

• Supply of replacement seats, actuators, stems, and seals

• Optional upgrades for high-cycle automation or enhanced corrosion resistance

4.4 Troubleshooting Support

• Expert assistance for performance optimization and fault diagnosis

• Access to technical manuals, wiring diagrams, and maintenance guides

5. Specifications and Models

Electric Resilient Seated Gate Valves come in a variety of sizes, pressure ratings, and materials, suitable for diverse applications:

6. Applications and Industries

• Water Treatment Plants: Automated control of potable and process water

• Wastewater Management: Reliable operation with sludges and treated water

• Chemical Processing: Handles corrosive and viscous liquids efficiently

• Industrial Fluid Systems: Suitable for automated pipelines in manufacturing

• Power Plants: Controls cooling water, condensate, and other liquid circuits

Case Study Example

A municipal water treatment facility implemented electric resilient seated gate valves to automate flow control, resulting in:

• 30% reduction in manual operation labor

• Improved system reliability and minimal leakage

• Extended valve and actuator service life through automated monitoring

7. Advantages of Electric Resilient Seated Gate Valves

• Tight Shut-Off: Resilient seat ensures minimal leakage

• Automated Operation: Electric actuator enables remote control and monitoring

• Durable Construction: Resistant to corrosion and wear

• Maintenance-Friendly: Easy lubrication and seat replacement

• Energy-Efficient: Smooth flow reduces pumping costs

• Standards Compliant: ISO, EN, and API certifications ensure reliability

8. Conclusion

The Electric Resilient Seated Gate Valve is a critical component for modern automated pipelines, offering tight sealing, reliable operation, and long-term durability. By following proper packaging, transportation, maintenance, and technical support guidelines, operators can ensure optimal performance, reduced downtime, and sustainable system operation.
