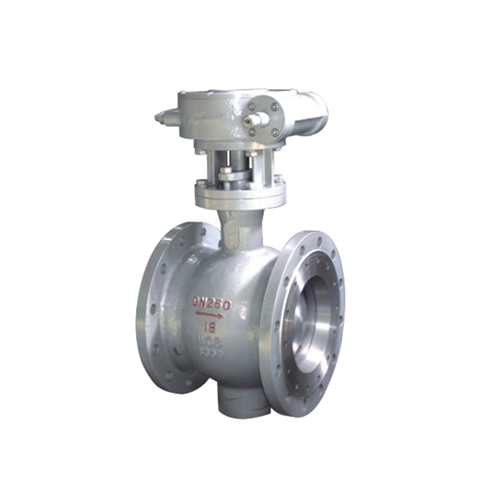

Side-Mounted Eccentric Half Ball valve – Complete Product Guide

Introduction

The Side-Mounted Eccentric Half Ball Valve is a high-performance valve designed for precise flow control and reliable shut-off in industrial pipelines. Its eccentric half-ball design reduces friction between the ball and seat, ensuring smooth operation, long service life, and minimal wear. The side-mounted configuration allows for compact installation and easy access for operation and maintenance.

Constructed from stainless steel, carbon steel, or alloy materials, the valve provides excellent corrosion resistance, high-pressure tolerance, and tight sealing performance. It is widely used in chemical processing, petrochemical plants, water treatment systems, and energy industries, offering enhanced durability, operational efficiency, and easy maintenance.

1. Key Features and Benefits

Product Highlights

• Eccentric Half-Ball Design: Reduces contact between the ball and seat, lowering wear and extending valve life.

• Side-Mounted Structure: Compact installation with easy access for maintenance and actuator attachment.

• Corrosion-Resistant Materials: Stainless steel, carbon steel, or alloy body ensures durability in aggressive environments.

• Leak-Proof Sealing: Precision-engineered seats provide tight shut-off and prevent leakage.

• High Pressure & Temperature Tolerance: Suitable for demanding industrial applications.

• Versatile Applications: Ideal for liquids, gases, and corrosive fluids.

Technical Specifications

2. Accessories and Components

Side-Mounted Eccentric Half Ball Valves can be equipped with various accessories to enhance performance and usability:

• Actuators: Electric or pneumatic for automated operation.

• Positioners and Limit Switches: For precise monitoring and control.

• Mounting Kits: Simplifies actuator installation.

• Stem Extensions: Allows operation in hard-to-reach or insulated areas.

• Insulation Jackets: Protects against temperature fluctuations and environmental exposure.

Accessories Table

3. Installation Guidelines

Proper installation ensures optimal valve performance and safety:

1. Pre-Installation Check: Confirm valve compatibility with pipeline size, pressure rating, and medium type.

2. Alignment: Ensure the pipeline flanges or threads are properly aligned to avoid stress on the valve body.

3. Flow Direction: Install according to the flow arrow indicated on the valve body.

4. Torque Settings: Apply manufacturer-recommended torque to flanges or bolts.

5. Actuator Installation: Attach electric or pneumatic actuators as per wiring and air supply guidelines.

6. Leak Testing: Conduct pressure testing post-installation to ensure tight sealing and leak-free operation.

Tip: Avoid excessive force when operating the valve to prevent damage to the ball or seat.

Installation Diagram

(Include schematic showing valve body, eccentric half-ball, seats, stem, flanges, and actuator if applicable.)

4. Operation and Usage

• Manual Operation: Rotate the handle smoothly to avoid excessive force.

• Actuated Operation: Ensure actuators are properly calibrated and aligned for full stroke.

• Flow Control: Adjust flow gradually for precise regulation.

• Safety Measures: Always depressurize the pipeline before opening or performing maintenance on the valve.

5. Maintenance Recommendations

Proper maintenance ensures long-lasting performance, leak-free operation, and operational safety:

Routine Maintenance

Maintenance Tips

• Inspect the valve body and seats for corrosion, cracks, or wear.

• Replace damaged or worn seals immediately to prevent leakage.

• Flush the valve interior to remove debris or chemical buildup.

• Lubricate stem threads and actuator components as recommended by the manufacturer.

• Test valve operation periodically to ensure smooth movement.

6. Troubleshooting Guide

7. Applications

The Side-Mounted Eccentric Half Ball Valve is ideal for industries requiring precise control, corrosion resistance, and durability:

• Chemical Processing: Handling corrosive acids, alkalis, and solvents.

• Petrochemical Plants: High-pressure fluid control with reliable sealing.

• Water Treatment Systems: Corrosion-resistant control for treated or chlorinated water.

• Energy and Power Plants: Efficient flow regulation for oil, gas, or steam pipelines.

Application Case Table

8. Conclusion

The Side-Mounted Eccentric Half Ball Valve provides high durability, precise flow control, and safe operation in demanding industrial environments. Following proper installation, accessory integration, and routine maintenance ensures long-term performance and leak-free operation. Its eccentric half-ball design, side-mounted configuration, and corrosion-resistant construction make it a dependable and cost-effective solution for controlling fluids in chemical, petrochemical, water treatment, and energy industries.
