TECHNIAL STANDARD
1.Nominal Pressure:PN≤1.6MPa
2.Working Medium:Water,oil,non-corosive and non-combustible gas
3.Working Temperature:-20℃≤T≤150℃
4.Pipe thread to ISO 228
DN | SIZE | L | B | H | D |
15 | 1/2 | 72 | 10 | 8 | 37 |

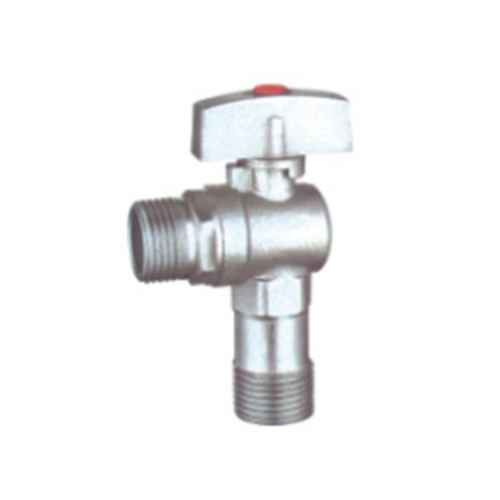

triangle valve: Product Advantages, Troubleshooting, Failure Analysis, and Packaging Specifications
A triangle valve is a specialized control valve widely used in industrial, commercial, and utility pipelines. Its unique triangular design allows efficient flow regulation and precise control in complex piping systems. With high durability and leak-proof performance, triangle valves are ideal for applications where reliability and ease of operation are critical.
This article provides an in-depth overview of product advantages, troubleshooting procedures, failure cause analysis, and packaging specifications, offering professional guidance for engineers, procurement teams, and end-users.
A triangle valve is a type of flow control valve with a triangular-shaped disc or wedge that regulates the passage of liquids or gases. The triangular design improves sealing efficiency, reduces pressure drop, and enhances operational stability. These valves are widely used in water supply, chemical processing, HVAC systems, and other industrial applications.
Key Features:
Triangular disc for tight sealing and minimal leakage
Durable materials such as brass, stainless steel, or alloy steel
Smooth operation with minimal torque
Suitable for liquids, gases, and non-corrosive fluids
Compact and easy to install
Triangle valves offer several significant advantages over conventional valves:
The triangular disc design ensures tight shut-off, preventing leakage even under high pressure. This makes the valve reliable for critical pipelines.
Manufactured from high-quality metals and alloys, triangle valves resist corrosion and wear, offering long-term reliability.
The valve requires low operating torque, making it easy to open and close manually or integrate with actuators.
Triangle valves can handle liquids, gases, and non-corrosive chemicals, making them suitable for a variety of industries including water supply, chemical plants, and HVAC systems.
The triangular configuration allows installation in tight spaces where conventional valves may be difficult to fit.
Even high-quality triangle valves can occasionally experience operational issues. Below is a structured troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Valve leaks | Worn or damaged seal | Replace seal or O-ring |
| Stiff or hard to operate | Debris in valve or improper lubrication | Clean valve interior; apply suitable lubricant |
| Inconsistent flow | Obstruction or partially closed disc | Inspect and remove obstruction; ensure full travel |
| Noise during operation | Cavitation or high velocity flow | Reduce flow rate or install flow control devices |
| Handle does not lock properly | Misalignment or damaged locking mechanism | Adjust handle alignment or replace locking device |
Understanding why a triangle valve fails is critical for preventive maintenance and reducing downtime. Common causes include:
Continuous operation, high temperature, or abrasive fluids can wear out seals. Regular inspection and timely replacement prevent leaks.
Exposure to aggressive chemicals or poor-quality materials may lead to corrosion. Selecting the right material (e.g., stainless steel or corrosion-resistant alloys) mitigates this risk.
Incorrect alignment, excessive torque, or inadequate support can cause operational difficulties. Following manufacturer installation guidelines ensures proper function.
Particles in the fluid can obstruct valve movement or damage internal components. Installing filters upstream helps prevent this problem.
Impact, vibration, or excessive pressure can damage the triangular disc or stem. Protective measures and proper system design reduce mechanical failures.
Proper packaging is essential to protect triangle valves during storage and shipment. Typical packaging standards include:
| Packaging Type | Description |
|---|---|
| Individual Boxes | Each valve wrapped in foam or bubble wrap to prevent scratches |
| Wooden Crates | For large valves or bulk shipments; protects against impact and moisture |
| Palletized Packing | Multiple valves secured on pallets with shrink wrap or straps |
| Labeling | Includes valve size, model number, pressure rating, and batch information |
| Optional Protective Coating | Anti-corrosion oil or plastic caps on ports for long-term storage |
Benefit: Proper packaging ensures valves arrive in perfect condition, ready for immediate installation.
Triangle valves are manufactured using various materials depending on application requirements:
| Material | Advantages | Applications |
|---|---|---|
| Brass | Corrosion-resistant, cost-effective | Water supply, general pipelines |
| Stainless Steel | High strength, chemical resistance | Chemical processing, industrial use |
| Alloy Steel | Durable under high pressure and temperature | Heavy-duty industrial pipelines |
| PVC/Plastic | Lightweight, non-corrosive | Low-pressure and non-critical systems |
Verify valve size, material, and pressure rating.
Ensure pipeline is clean and free from debris.
Align the valve correctly with the pipeline.
Apply sealant for threaded connections.
Test for leaks before full operation.
Operate periodically to prevent sticking.
Inspect seals, O-rings, and the locking mechanism regularly.
Clean internal components to remove debris.
Replace worn parts promptly to maintain optimal performance.
| Feature | Triangle Valve | Conventional Valve |
|---|---|---|
| Sealing Performance | Tight shut-off, minimal leakage | Moderate sealing, may allow slight leaks |
| Space Requirement | Compact, suitable for tight spaces | Requires more installation space |
| Flow Control | Smooth and precise | Less precise in certain applications |
| Maintenance | Easy to service and inspect | Moderate maintenance required |
| Durability | Resistant to wear and corrosion | Varies based on material |
Insight: Triangle valves provide a combination of precision, compactness, and reliability, making them ideal for modern industrial applications.
The triangle valve is a versatile and reliable choice for controlling the flow of liquids and gases in a wide range of industrial, commercial, and utility applications. With its unique triangular design, high sealing performance, and durable construction, it ensures leak-proof operation and minimal maintenance.
By understanding common troubleshooting issues, failure causes, and proper maintenance, users can maximize valve longevity and operational efficiency. Proper packaging and material selection further ensure valves arrive safely and function reliably in critical systems.
With a combination of product advantages, structured troubleshooting, and robust packaging, triangle valves are an excellent investment for professionals seeking precision, durability, and cost-effectiveness in pipeline control solutions.
