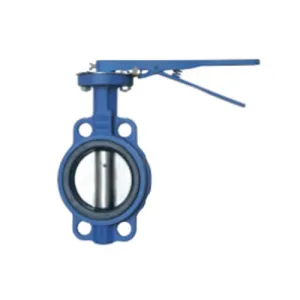

Wafer Butterfly Valve: Overview and Applications A wafer butterfly valve is a compact, lightweight, and cost-effective flow control device widely used in various industrial applications. It is designed to regulate or isolate fluid flow in pipelines by rotating a disc mounted on a central spindle. The term "wafer" refers to its slim profile, which allows it to be sandwiched between two pipe flanges without requiring additional bolting or support. Design and Construction The primary components of a wafer butterfly valve include: 1. Body: Typically made from cast iron, ductile iron, stainless steel, or other corrosion-resistant materials, the body houses the internal components and fits between pipe flanges. 2. Disc: A circular disc, often made of metal or lined with elastomers, rotates 90 degrees to open or close the flow path. The disc can be concentric (centered) or eccentric (offset) to improve sealing performance. 3. Seat: The seat provides a tight seal when the valve is closed. It is usually made of rubber, PTFE, or other resilient materials to ensure leak-proof operation. 4. Stem: The stem connects the disc to the actuator, transmitting rotational force to control the valve position. Working Principle The valve operates by rotating the disc perpendicular to the flow to shut off the medium or parallel to allow full flow. A quarter-turn (90-degree) motion is sufficient to transition between fully open and fully closed positions, making it quick and easy to operate manually or with an actuator. Advantages - Compact and Lightweight: Its wafer design saves space and reduces weight compared to other valve types. - Cost-Effective: Lower material and installation costs make it an economical choice for large-scale systems. - Low Pressure Drop: When fully open, the disc creates minimal obstruction, reducing energy loss. - Versatility: Suitable for water, air, gases, and mild corrosive fluids across industries like HVAC, water treatment, and chemical processing. Limitations - Not Ideal for High-Pressure Applications: Thinner bodies may not withstand extreme pressures compared to lug-style butterfly valves. - Limited Throttling Capability: While suitable for on/off service, precise flow control may be challenging due to disc design. Applications Wafer butterfly valves are commonly used in: - Water and wastewater treatment plants - HVAC systems - Food and beverage processing - Fire protection systems - General industrial piping Conclusion The wafer butterfly valve is a practical solution for flow control in low-to-medium pressure systems. Its simplicity, efficiency, and affordability make it a preferred choice for many industries, though proper material selection and installation are critical for optimal performance.
